PCBN Hard Turning Inserts CCGW Hard Turning Belt Wheel Powder Metallurgy HRC62

Name: PCBN Hard Turning Inserts CCGW Hard Turning Belt Wheel Powder Metallurgy HRC62
Brand: Halnn
Price: 1 USD

Wholesale PCBN Hard Turning Inserts CCGW Hard Turning Belt Wheel Powder Metallurgy HRC62 from china suppliers

Brand Name : Halnn

Model Number : CCGW

Certification : ISO9001

Place of Origin : China

MOQ : 10 pieces

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one Plastic box inside, carton box outside

Materials : PCBN Inserts

Suited Condition : Hard Turning

Brand : Halnn

Halnn Grade : BN-K20

Models : TCGW/CNGA/VNGA/VCGW

Origin Country : China

Contact Now

PCBN Insert BN-K50 CCGW Hard Turning Belt Wheel Powder Metallurgy HRC62

1. About Powder Metallurgy

Powder metallurgy (PM) is a term covering a wide range of ways in which materials or components are made from metal powders. PM processes can avoid, or greatly reduce, the need to use metal removal processes, thereby drastically reducing yield losses in manufacture and often resulting in lower costs.

However Powder metallurgy products usually are difficult to machine. Many end users always try to find the cutting tools which have good performance on powder metallurgical products. Specific for this material, Halnn researched special grades.

2. PCBN Insert BN-K50 for Powder Metallurgy

Insert Grade	Suited Materials	Machining Type	Typical Application
BN-K50	Powder Metallurgy	Finishing	Powder Metalurgy Valve seat
BN-K10	Gray Cast Iron, Powder Metallurgical	Finishing	Valve seat ring; Engine cylinder bore; Powder Metallurgy parts

3. Typical Application Case

BN-K50 PCBN Insert Hard Turning Powder Metalurgy Belt Wheel
Component: Belt Wheel Materials: Powder Metallurgy Gears Hardness: Macro hardness HRC40, Pellet Hardness HRC62 Insert Grade: BN-K50 CCGW09T304 Cutting Parameters: ap=0.35mm, Fr=0.15mm/r,Vc=150m/min
Insert Materials	Cutting Speed Vc (m/min)	Cutting Depth ap(mm)	Cutting Step
BN-K50	150	0.35	1
Other PCBN Insert	150	0.2	2

Product Tags:

cbn hard turning

hard part turning

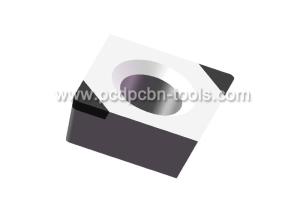

PCBN Hard Turning Inserts CCGW Hard Turning Belt Wheel Powder Metallurgy HRC62 Images
