CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts

Name: CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
Brand: Halnn
Price: 1 USD

Wholesale CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts from china suppliers

Brand Name : Halnn

Model Number : CNGA/DNGA/TNGA/WNGA

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one plastic box, outside carton box

Application : Hardened Steel

Halnn Grade : BN-H10/BN-H21/BN-K10/BN-K20/BN-S20

Materials : Cubic Boron Nitride

MOQ : 10 pcs

Coating : With/Without Coating

Origin Country : China

Contact Now

Hard Turning Inserts and CBN Grades For Finish Machining Hardened Steel

1.Hard Turning Inserts CBN Grade and Application

Insert Grade	Suited Materials	Machining Type	Insert Image
BN-S20	Hardened Steel, Heat and abrasive resistant steel, High manganese steel	Roughing,Semi-Finishing
BN-H11	Hardened Steel	Semi-Finishing,Finishing
BN-H20	Hardened steel,Other materials	Semi-Finishing,Finishing
BN-H05	Hardened Steel	Finishing
BN-H10	Hardened Steel, high strength cast iron	Finishing
BN-H21	Hardened Steel	Finishing

2.Cutting Parameters for reference

CBN Content	Halnn CBN	Cutting Depth	Condition
Low Content	BN-S20	1-10mm	Continuous~ Interrupt
	BN-H11	≤1mm	Continuous
	BN-H05	≤0.2mm	Continuous
	BN-H10	≤0.5mm	Continuous~Semi- Interrupt
	BN-H21	≤0.5mm	Semi-Interrupt ~Heavy Interrupt

3.Typical Application Case ~ Hard Turning Gears

Hard Turning Inserts BN-H10 CNGA continuous turning gears
	Component	Gears	Materials	20CrMnTi
	Hardness	HRC58~62	Machining Condition	Dry Cutting
	Insert Grade	BN-H10 CNGA120408	Roughness requirements	Ra0.8
	Vc=180m/min, fr=0.1mm/r, ap=0.2mm
	CBN Grade	PCBN Inserts	Halnn BN-H10	Halnn BN-H10 C25 (Coating PCBN)
	Machining Qty (pieces/insert)	550	800	1200
	Tool Life	......	Improved 45%	Improved 118%

4. Application

PCBN Inserts are mainly used for machining hardened steel and cast iron materials. Above cbn grade are mainly used for hard turning hardened steel, such as Gear Steel, Bearing Steel, Carbon tool steel, die steel, high-speed steel and so on.

Product Tags:

hard turning tools

hard part turning

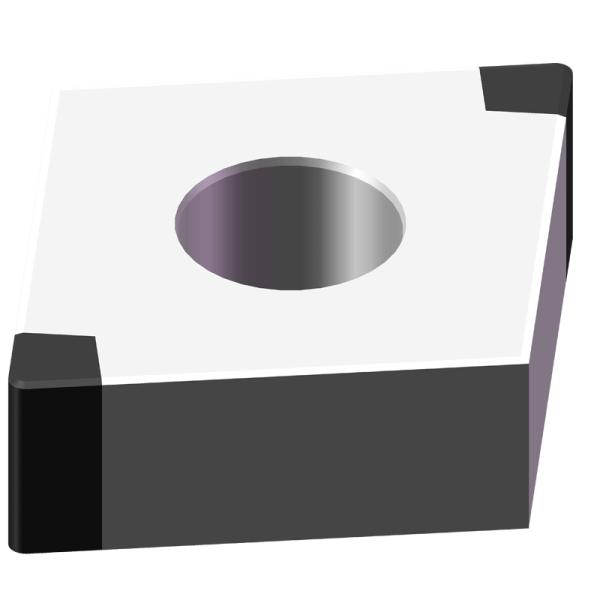

CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts Images
