Halnn Solid CBN Inserts Cubic Boron Nitride Finish Milling Gray Cast Iron Engine Block

Name: Halnn Solid CBN Inserts Cubic Boron Nitride Finish Milling Gray Cast Iron Engine Block
Brand: Halnn
Price: 1 USD

Wholesale Halnn Solid CBN Inserts Cubic Boron Nitride Finish Milling Gray Cast Iron Engine Block from china suppliers

Brand Name : Halnn

Model Number : SNEN09/SNEX12/SCGN12

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs/month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Materials : Solid CBN Inserts

Machining Type : Milling

Application : Engine/Engine Block/End Surface/Cylindrical

Origin Country : China

Model No. : SNEN09/SNEX12/SCGN12

Halnn Grade : BN-S300

Contact Now

Solid CBN Inserts SNEN09/SNEX12/SCGN Finish Milling Gray Cast Iron Engine Block

1. Halnn Solid CBN Insert for Milling Gray Cast Iron Engine

Insert Grade	Suited Materials	Machining Type	Typical Application
BN-S300	Gray Cast Iron	Roughing, Finishing	Brake Disc, Cast Iron Engine,Gearbox, Cylinder Liner, Engine Block

2.BN-S300 Solid CBN Inserts for milling gray cast iron

CBN Grade	Binder	CBN Content(%)	Granularity(μm)	Hardness(HV)
BN-S300	AL,TIC	97	4-6	3400-3600

BN-S300 Solid CBN Inserts are the most suitable cbn grade for milling gray cast iron, the cutting depth can be within 2mm, and can be used for continuous turning condition, which belong to high content cbn.

3.Typical Application

BN-S300 Solid CBN Inserts Finish Milling Engine Block
Machining Part	Engine Block
Materials	Gray Cast Iron FC250, HB220~260
Insert Grade	BN-S300 SNEN090308
Cutting Parameters	ap=0.3mm,Fr=0.12mm/r,Vc=1700m/min
Testing Performance
Selected Insert	Linear Speed (m/min)	Life Time/Edge	Costs/Insert
Halnn BN-S300	3670	85	＄100
Other CBN Inserts	3670	80	＄140

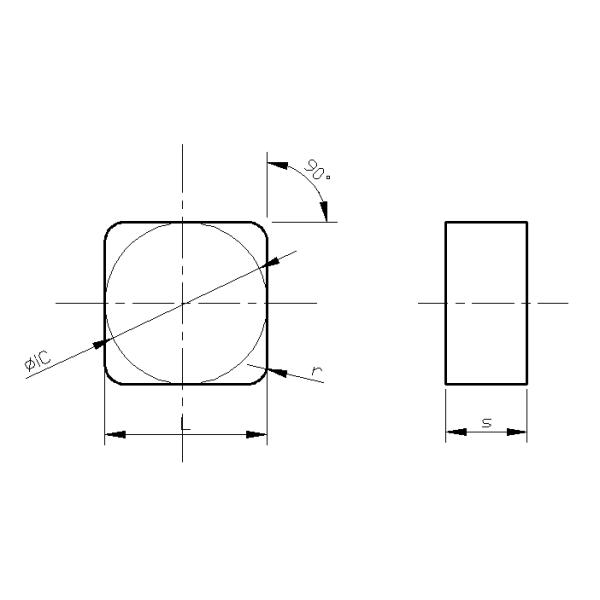

4. Common Models SNEN for Milling Engine Block

SNEN Solid CBN Inserts
Type	Dimension				Grades	Matched Milling Cutters
Type	L(mm)	φI.C(mm)	S(mm)	r(mm)	BN-S300	Matched Milling Cutters
SNEN0903ENS	9	9.525	3.18	0.8	●	FME Series High Efficiency Milling Cutters FEM02 Precision face milling cutters FEM03 Precision face milling cutters
SNEN0904ENS	9	9.525	4.76	0.8	●
SNEN1204ENS	12	12.7	4.76	1.2	●
SNEN1207ENS	12	12.7	7.94	1.2	●
SNEN120712	12	12.7	7.94	1.2	●
SNEN19T6ENS	19	19.05	6.8	1.6	●

5. Application Image
