PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore
1. Halnn Tools PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore
There are many difficulties on hard turning Gear after heat treating:
(1)The hardness of the Gear will reach HRC58~62, the insert will wear rapidly, which will affect the processing efficiency.
(2) Some Gears exist interrupted turning condition (end surface has hole), the cutting tools will be easily chipping, so the costs will be high.
(3) For large scale Gears, the hardness after heat treating will be high, and the deformation also will be large, it will require high wear resistance and impact resistance on the cutting tools.
2. PCBN Insert Characteristics
| CBN Grade | Blinder | CBN Content | Granularity(μm) | Hardness |
| BN-H10 | TIN | 50 | ≤1 | 2700-2800 |
| BN-H21 | AL,TINC | 60 | 1~2 | 2600-2800 |
| BN-H05 C25 | TIN | 45 | ≤1 | 2700-2800 |
| BN-H10 C25 | TIN | 50 | ≤1 | 2700-2800 |
| BN-H21 C25 | AL,TINC | 60 | 1~2 | 2600-2800 |

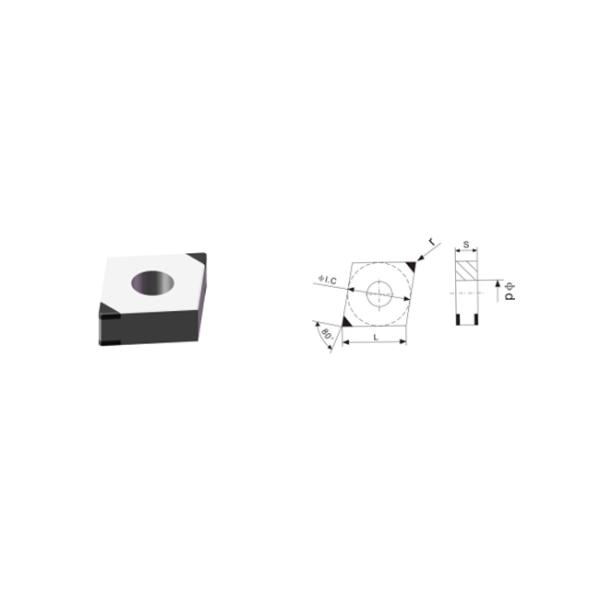

3.Detailed Data of PCBN Insert
 |
| Type | Dimension | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H10 | BN-H21 | BN-K10 |
| CNGA120404-4S | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | ◎ | ◎ | ◎ |
| CNGA120408-4S | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | ◎ | ◎ | ◎ |
| CNGA120412-4S | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 | ◎ | ◎ | ◎ |
| CNGA120416-4S | 12.9 | 12.7 | 4.76 | 5.16 | 1.6 | ◎ | ◎ | ◎ |
4.Packing of Halnn Tools PCBN Insert
5.Application Case
PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore
| Machining Workpiece: | Gears |  |
| Machining Type: | Finish Turning |
| Machining Part: | Inner Bore |
| Workpiece Hardness: | HRC58~62 |
| Insert Model: | BN-H21 CNGA120404-4S |
| Processing Type: | Dry Cutting |
| Cutting Parameters: | Vc=300m/min,Fr=0.1mm/r,ap=0.3mm |
| Machining Effect |
| Insert Materials | Cutting Speed | Depth of Cut | Insert Lifetime |
| Halnn BN-H21 | 300 m/min | 0.3 mm | 600 pieces/blade |
| Other PCBN insert | 300 m/min | 0.3 mm | 450 pieces/blade |
6.Service
Pre-Sales Service
l) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.
After-sales Service
l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return.
