High quality PCBN Turning Tool Hard Machining Bearing Steel Wind turbine bearing
1. Halnn Tools High quality PCBN Turning Tool Hard Machining Bearing Steel Wind turbine bearing
With the development of science and technology, the precision requirements for the processing of extra large bearings are getting higher and higher. Due to the limitation of the machining precision of the general CNC vertical lathe, the reaming reamer of the grinding process has a longer grinding time and lower efficiency. With the development and application of superhard tools (CBN tools), in many cold machining, grinding can be replaced by turning.
CBN tool features for hard-turned bearing:
(1) CBN tools have high oxidation resistance. When machining bearings with CBN tools, dry cutting is used as much as possible.
(2) CBN tools have a low coefficient of friction, which is conducive to the improvement of the surface quality.

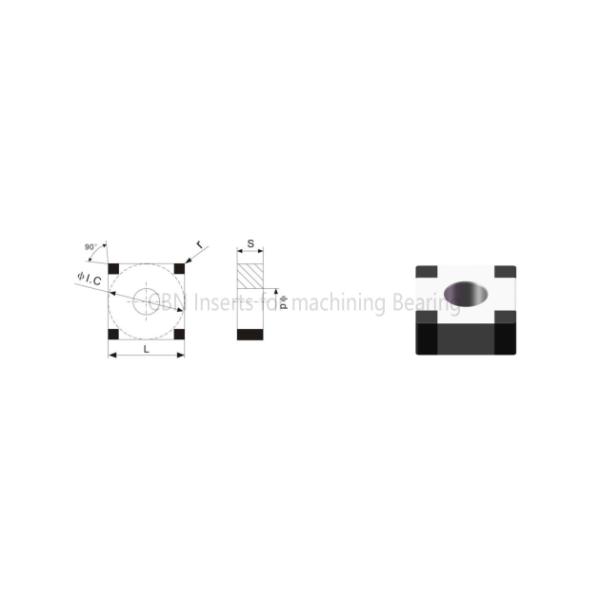

2.Detailed Data of PCBN Turning Tool
 |
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H11 | BN-H20 | BN-K20 | BNK30 |
| SNGA120404-8S | 12.7 | 12.7 | 4.76 | 5.16 | 0.4 | S01015 S01020 S01025 S02020 | ● | ● | ● | ● |
| SNGA120408-8S | 12.7 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | ● | ● |
| SNGA120412-8S | 12.7 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | ● | ● |
3.Pictures of Halnn Tools PCBN Turning Tool
4.Application Case of CBN Cutting Tool Machining Bearing
High quality PCBN Turning Tool Hard Machining Bearing Steel Wind turbine bearing
| PCBN Turning Tool Hard Machining Bearing |
| Machining Part: Wind turbine bearing |  |
| Workpiece Hardness:HRC55 |
| Cutting Type:Dry Cutting |
| Machining Materials:42CrMoa4 |
| Inserts Grade: SNGA120404-8S |
| Cutting Parameters |
| Inserts Materials | Vc (m/min) | Ap(mm) | Processing effect |
| Halnn BN-h11 | 150 | 1.2mm | Roughness reaches Ra0.5 |
5.FAQ
1. Are you a trading company or manufacturer ?
A: We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) abrasives and tools.
2. How long is your delivery time?
A: Generally it is 3 -7 days.
2. Do you provide samples ? Is it free or extra ?
A: Normally we do not offer free samples, we could offer the sample for testing, but shipping fee is to be paid by customer as a company policy!
