1. Halnn Tools RCMN full form CBN Turning Insert Finishing Gray Cast iron Brake Disc

According to statistics, in the cost of machine manufacturing industry, the cutting fluid

has occupied 15%, and the costs on cutting tools only have 3%~5%. So the new technology of dry cutting will become one new technology. It not only can lower the total costs, but also can reduce the environment pollution. In the process, the most important is cutting tool material.,In order to achieve high cutting speed and dry cutting type, the cutting tools materials need have High temperature red hardness, stability and low Coefficient of friction. The materials can be only cubic boron nitride in nowadays.

2. Why we Choose Halnn Tools full form CBN Turning Insert Finishing Gray Cast iron Brake Disc

Brake disc has low hardness, traditional cutting tools can machine brake disc, but why do the manufacturers also choose CBN inserts which costs higher than traditional cutting tools?

(1) Brake Disc belong to Mass production, it requires high on the production efficiency, traditional cutting tools,such as carbide insert can machine brake disc, but the process efficiency is low. It only suit for small production.

(2) Nowadays most mass production brake disc enterprise, they use CNC Lathe, and many manufacturer know that traditional cutting tools can be used for high speed cutting, when the cutting speed is above 350m/min, the insert will wear rapidly which will affect the production efficiency and the workpiece surface quality.

3.Application of CBN Turning Insert

5.Detailed Data of RCMN CBN Turning Insert

Type	Dimension				Standard Chamfer	Grades
	L(mm)	φI.C(mm)	S(mm)	r(mm)		BN-K1	BN-S10	BN-S20	BN-S200	BN-S300
RCMN060400		6.35	4.76		S01020 S02020 S05020 S10020	●	●	●	◎	●
RCMN090400		9.525	4.76			●	●	●	◎	●
RCMN090700		9.525	7.94			●	●	●	◎	●
RCMN120700		12.7	7.94			●	●	●	◎	●
RCMN150700		15.875	7.94			●	●	●	◎	●
RCMN190700		19.05	7.94			●	●	●	◎	●

---

6.Application Case

Item	Brake Drum Manufacturer	Image
Component Materials	GC250 (HT250)
Machining Process	Roughing, Dry Cutting
Hardness	HB170~HB210
Selected insert	CNGN120412
Testing Performance Comparison
Insert Materials	Cutting Parameters	Machining Qty
Halnn BN-S300	Vc=1150,Fr=0.2,ap=0.25	200
Other PCBN	Vc=880,Fr=0.2,ap=0.25	30
The Tool Life of Coating CBN Inserts improved about 30%, And the roughness Kept Ra1.6

---

7.Our service

Pre-Sales Service

l ) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l ) Same testing support
l ) Every batch of products will be tested to ensure its quality.

After-sales Service

l ) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l ) Product with any problem can return

cbn cutting tools

cbn turning inserts

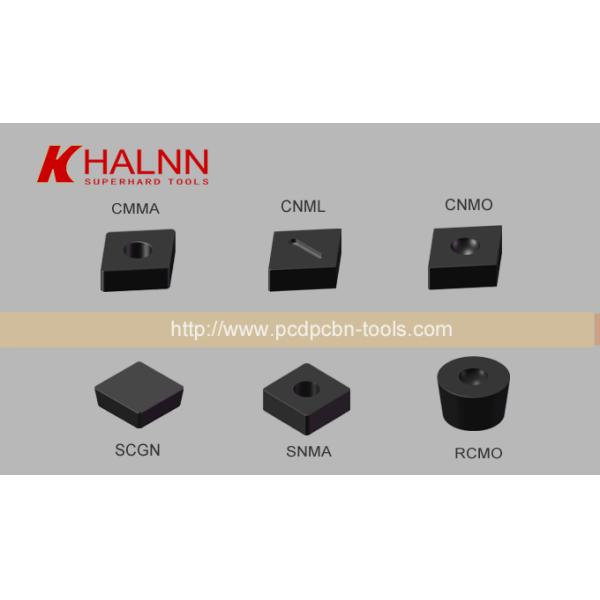

High Cost Performance RCMN full form CBN Turning Insert Finishing Gray Cast iron Brake Disc Images
