Full Face PCD Grooving Tools Machining Rolls , Ceramic Inserts For Turning

Name: Full Face PCD Grooving Tools Machining Rolls Ceramic Inserts For Turning
Brand: Halnn
Price: 1 USD

Wholesale Full Face PCD Grooving Tools Machining Rolls , Ceramic Inserts For Turning from china suppliers

Brand Name : Halnn

Model Number : RCGX104/RCGX1207

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one plastic box, outside carton box

Models : RCGX104/RCGX1207

Materials : Polycrystalline Diamond PCD

PCD Type : V Grooves

Angle : 120 degree

MOQ : 10 pcs

Brand : Halnn

Application : Grooving Rolls

Contact Now

PCD Grooving Tools Full Face PCD Inserts RCGX Replace Ceramic Inserts Machining Rolls

1. Advantages of Full Face PCD Inserts PCD Grooving Tools

It can be RCMX or RCGX Full Face PCD Inserts

Full Face PCD Inserts can be used in many fields, such as automotive industry, energy equipment and other wood working, stone machining industry.

Full Face PCD Inserts also can be used for machining different materials, such as non-ferrous metal, tungsten carbide, ceramic and composite materials.

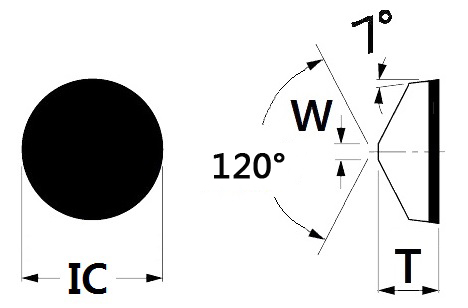

2. RCGX V-type Full Face PCD Inserts for machining rolls

RCGX/RCGX-V Full Face PCD Inserts
ISO No.	Item No.	Dimension				Standard Chamfer	Corresponding tool holder
ISO No.	Item No.	L(mm)	φI.C(mm)	S(mm)	b(mm)	Standard Chamfer	Corresponding tool holder
RCGX060400V	RCGX102	6	6.35	4.76	0.8	S01020 S02020 S03020 S05020 S10020 S20020	CRDCN
RCGX060500V		6	6.35	5.56	0.8
RCGX060600V		6	6.35	6.35	0.8
RCGX090700V	RCGX103	9	9.525	7.94	1
RCGX120700V	RCGX104	12	12.7	7.94	2
RCGX151000V	RCGX105	15	15.875	10	2
RCGX191000V	RCGX106	19	19.05	10	2
RCGX251200V	RCGX108	25	25.4	12	2

3. The corrsponding tool holder for RCGX Solid CBN Inserts


Type	Dimension				Matched insert
Type	h1=h2	L2	b	L1	Matched insert
CRDCN2020M06	20	30	20	150	RCMX06
CRDCN2525M09	25	30	25	150	RCMX09
CRDCN3232P12	32	35	32	170	RCMX12
CRDCN4040S15	40	38	40	250	RCMX15
CRDCN5050T20	50	38	50	300	RCMX20

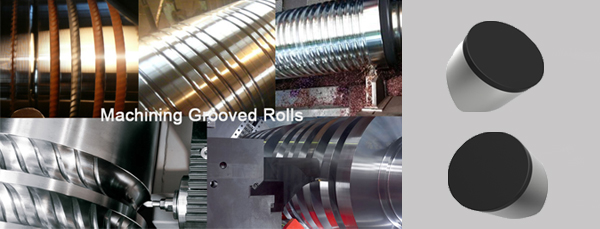

4. Rolls Image and the corresponding tool holder

Full Face PCD Grooving Tools Machining Rolls , Ceramic Inserts For Turning
