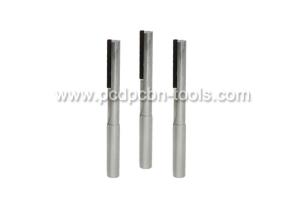

Straight Flute Carbide Tapered PCD End Mills Helical Indexable Milling Cutters

Name: Straight Flute Carbide Tapered PCD End Mills Helical Indexable Milling Cutters
Brand: Halnn
Price: 1 USD

Wholesale Straight Flute Carbide Tapered PCD End Mills Helical Indexable Milling Cutters from china suppliers

Brand Name : Halnn

Model Number : φ6,φ8,φ10,φ12

Certification : ISO9001

Place of Origin : China

MOQ : 2 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,paypal

Supply Ability : 10000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : Single package, each of which is a separate plastic tube,10 pcs a group

Product Name : Straight Flute End Mills

Application : Composites and Aluminum Alloy

Body : Tungsten Caribde

PCD Blade : Single or Double Flutes

OEM/ODM : Accept

Transpation : UPS/DHL/Fedex

Contact Now

Straight Flute PCD End Mills Diamond Cutting Tools For Machining Composites and Aluminum Alloy

1. Halnn PCD End Mills Advantages

PCD (Polycrystalline Diamond) is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

Advantages of Halnn PCD End Mills

(1) Halnn Can offer you good quality PCD Materials (CDW010) which is universal pcd grade for machining both aluminum alloy and other composites.

(2) Halnn not only can offer you the size as following, but also can produce pcd end mills as your requirements, only you offer all the size you need, such as shank diameter, total length, blade length, blade diameters,ect.

2. Specification

Doubl Straight Flutes PCD End Mills (Miling Depth up to 2xd1)
Order Code	d1	l3	d2	l2	l1	Teeth No.
DM061360-2S	6	13	6	40	60	2
DM081872-2S	8	18	8	40	72	2
DM102297-2S	10	22	10	40	97	2
DM122597-2S	12	25	12	50	97	2
DM143097-2S	14	30	14	50	97	2
DM163497-2S	16	34	16	50	97	2
DM183897-2S	18	38	18	50	97	2
DM204297-2S	20	42	20	50	97	2

3. Offer your requirements as the following form, we will offer you the products you would like:

Blade Diameter

Blade Length

Total Length

Shank Length

Shank Diameter

Machining Materials

d1 (mm)

l3 (mm)

l1 (mm)

l2 (mm)

d2 (mm)

Aluminum Alloy or Composites

4. Typical Application of PCD End Mills
