VNGA PCBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve

Name: VNGA PCBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve
Brand: Halnn
Price: 1 USD

Wholesale VNGA PCBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve from china suppliers

Brand Name : Halnn

Model Number : VNGA160408-4S

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Mnchining Process : Hard Turning

Dimension : Customter-made

Application : Gears

Origin Country : Henan,China

Mnchining Material : 20CrMnTi Gear Wheel

Brade : Halnn Tools

Insert Garde : VNGA160408-4S

Body : Tungsten Carbide

Contact Now

BN - H11 VNGA PCBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve

1. Halnn Tools CBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve

According to the machining allowance, the tool grade is selected, and the machining allowance is within 0.3mm. Halnn Tools recommends BN-H10 grade, BN-H11 grade, BN-H20 grade and BN-H21 grade. The machining allowance is greater than 1mm, and the BN-S20 grade is recommended.

The Halnn Tools BN-H10 grade, BN-H11 grade is recommended for continuous cutting conditions. Medium interrupted cutting selection Haln Tools cubic boron nitride insert BN-H20 grade and BN-H21 grade, strong interrupted cutting gear with Halnn Tools cubic boron nitride insert BN-H21 grade.

2. PCBN Turning Tool Characteristics

Insert Grade	Blinder	Depth of Cut (mm)	Typical Application
BN-H05	TIN	≤0.2mm	Gears,Gear Shaft, Bearings
BN-H10	TIN	≤0.5mm	Bearings, Gears, Gear Shaft, High hardness component
BN-H05 C25	TIN	≤0.2mm	Gears,Gear Shaft, Bearings
BN-H10 C25	TIN	≤0.5mm	Bearings, Gears, Gear Shaft, High hardness component
BN-H21 C25	AL,TINC	≤0.5mm	Bearings, Gears, Gear Shaft,Mold,ect.

3.Detailed Data of PCBN Turning Tool


Type	Dimension					Grades
Type	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)	BN-H11	BN-H20	BNK30
VNGA160404-4S	16.6	9.525	4.76	3.81	0.4	●	●	●
VNGA160408-4S	16.6	9.525	4.76	3.81	0.8	●	●	●
VNGA160412-4S	16.6	9.525	4.76	3.81	1.2	●	●	●

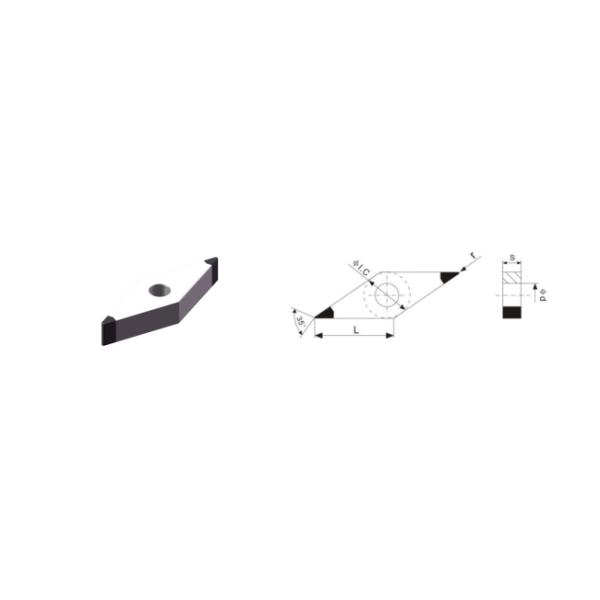

4.Pictures of Halnn Tools PCBN Turning Tool

VNGA PCBN Turning Tool Heavy Interrupted Cutting Gear Wheel Steel Synchronizer Tooth Sleeve

5.Application Case

Machining Workpiece:	Synchronizer
Machining Part:	Tooth Sleeve
Machining Materials:	Gear Wheel Steel
Processing Type:	Fine Finishing
Workpiece Hardness:	HRC58~62
Machining Type:	Continuous Fine Turning
Insert Model:	BN-H11 VNGA 160404
Cutting Parameters:	Vc=170m/min,Fr=0.1mm/r,ap=0.15mm
Machining Effect
Insert Materials	Cutting Speed	Tool Life/edge	Failure Mode
Halnn BN-H11	170 m/min	350 pcs	Normal Wear
Ceramic Insert	120 m/min	70 pcs	Chipping
